Continuous Soffit 3" Vent, 5/8 inch flange, 8' length, PVC


Continuous Soffit 3
Images/34 35850 58 dwg.jpg Images/54850.jpg Images/548-50-w-clip.gif Images/Painting PVC 2022.jpg
Item Number: 34-354858
  Be the first to review this item
$32.33
Quantity



Detailed Description

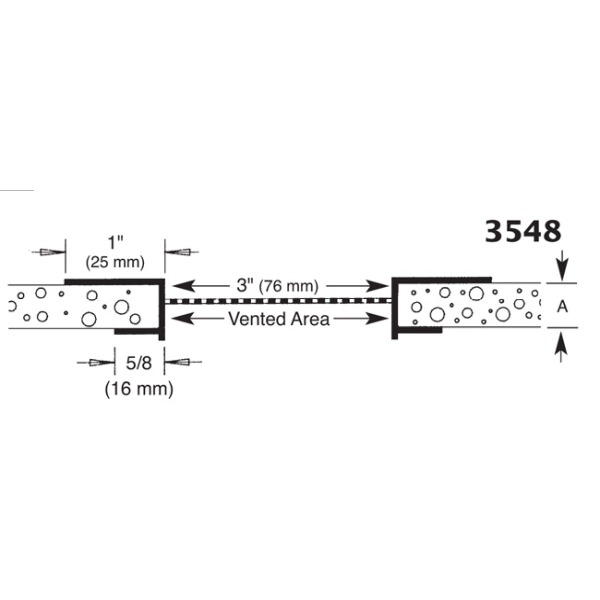

34-354858 Continuous Soffit Vent 5/8" Flange (sheathing) 3" Vented area Application: Designed specifically for sheathing products. Has a built-in stop (1/8"-3 mm) to assure proper base thickness as well as maintaining a clean finish edge. The stop flange is serrated for positive material bond. Will not rust, excellent paint adhesion. Connector clips are provided to eliminate sagging at butt joints. Vent holes 1/8" (3 mm) diameter

PVC Plastic

Click Here for Installation Instructions
